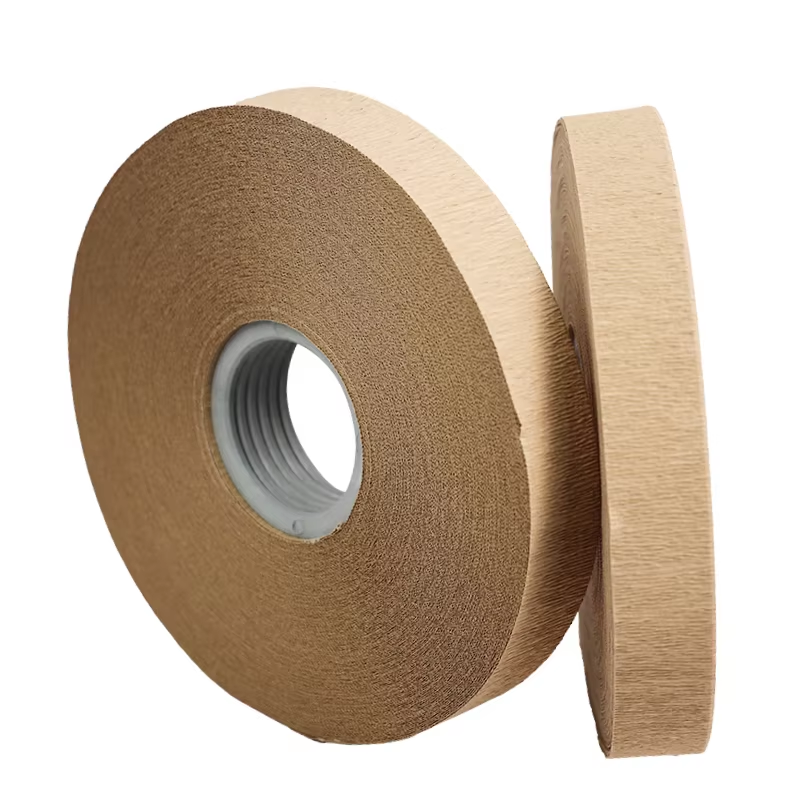

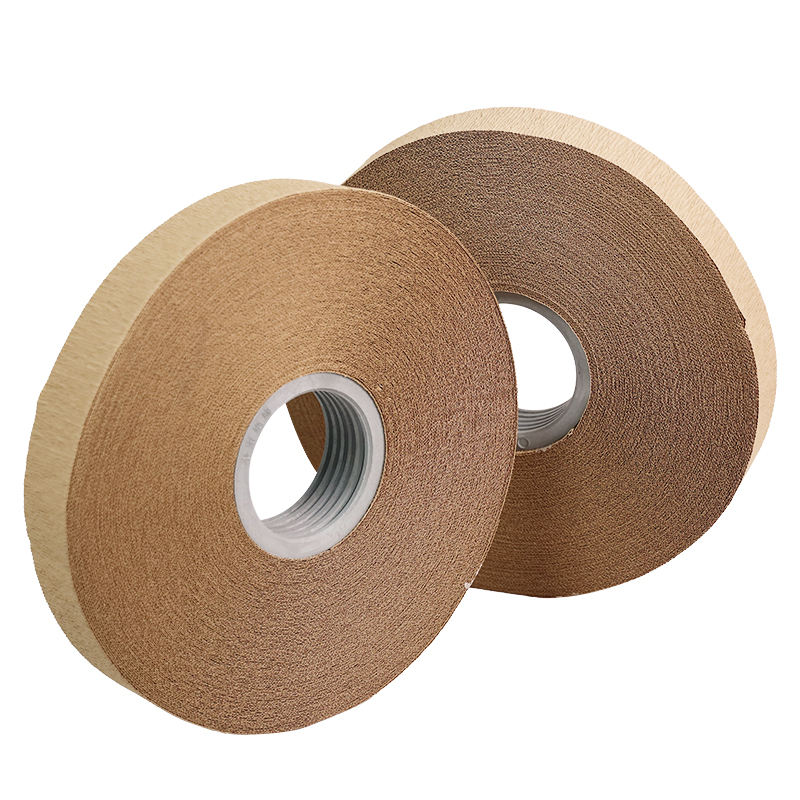

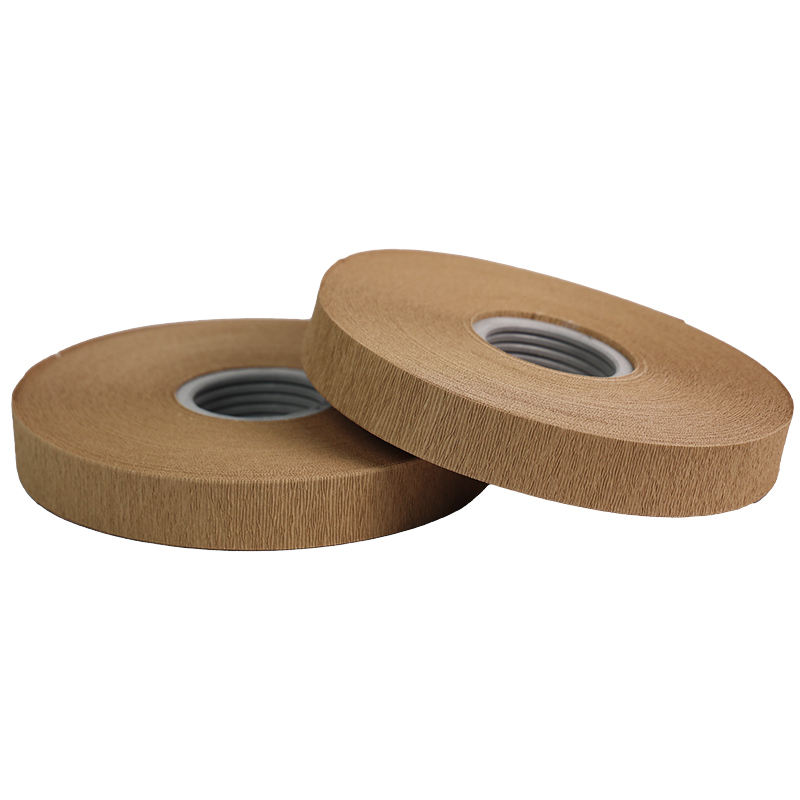

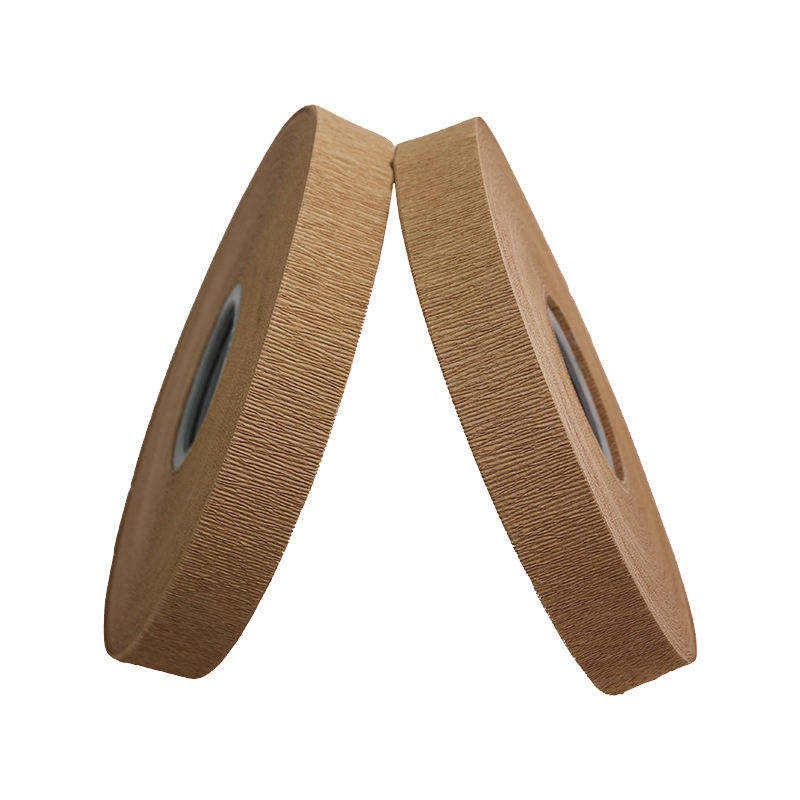

Electrical Insulation Crepe Paper is widely used for transformer and motor winding insulation, offering high elongation, excellent flexibility, and reliable dielectric strength. Made from 100% sulfate insulating wood pulp with controlled creping technology, it easily conforms to tight winding, curved surfaces, and layered insulation structures.
Compared with standard insulation kraft paper, crepe paper provides better cushioning and stretchability for coil wrapping, interlayer insulation, and oil duct spacing in both dry-type and oil-filled electrical equipment. Custom slit widths, roll lengths, and die-cut parts are available with fast delivery and small MOQ.
1. Produced from 100% high-purity sulfate insulating wood pulp
2. Creped structure delivers excellent flexibility and elongation
3. Better conformability than standard insulation kraft paper
4. Stable dielectric performance and good mechanical strength
5. Compatible with oil-impregnated and dry-type insulation systems
6. Helps absorb mechanical stress during winding and operation
| ltem | Unit | Value | ||||
| Insulation Crepe Paper | Thickness | mm | 0.05 | 0.075 | 0.08 | 0.13 |
| Tolerance | 0.35±0.05 | 0.48±0.08 | 0.60±0.10 | 0.80±0.10 | ||
| Ash Content | % | ≤0.7 | ≤0.7 | ≤1.0 | ≤1.0 | |
| Mositure | % | 6.0~9.0 | ||||
| Ether extract | % | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | |
| PH | 6.5~7.5 | |||||
| Pollution Oil | % | <0.1 | ||||
| Tensile Strength | MD | KN/m | ≥1.96 | ≥2.60 | ≥3.0 | ≥3.3 |
| CD | ≥1.30 | ≥1.96 | ≥2.3 | ≥2.7 | ||
| Wrinkle degree | % | ≥50 | ||||
| Breakdown voltage inair | Vlayer | ≥950 | ≥1000 | ≥1000 | ≥1000 | |
| Conductivity,water displacing liquid | mS/m | ≤8.0 | ≤8.0 | ≤9.0 | ≤10 | |
| Density | g/m² | 60±10% | 110±10% | 110±10% | 130±10% | |

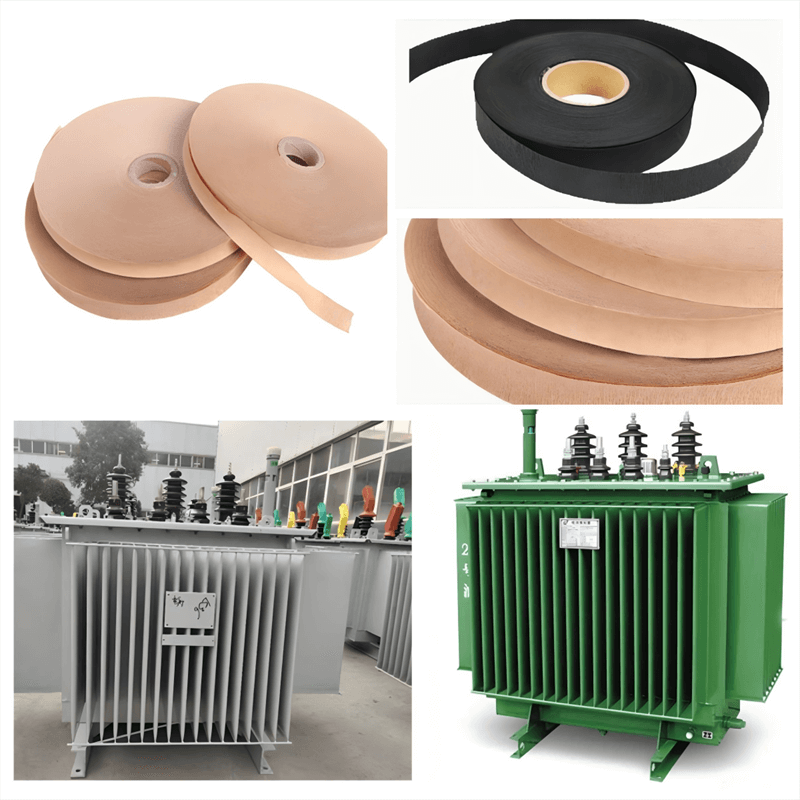

* Interlayer insulation in transformers and reactors
* Wrapping insulation for coils, windings, and copper or aluminum conductors
* Cushioning and spacing insulation in motors and electrical machines
* Electrical insulation applications requiring flexibility and tight wrapping
